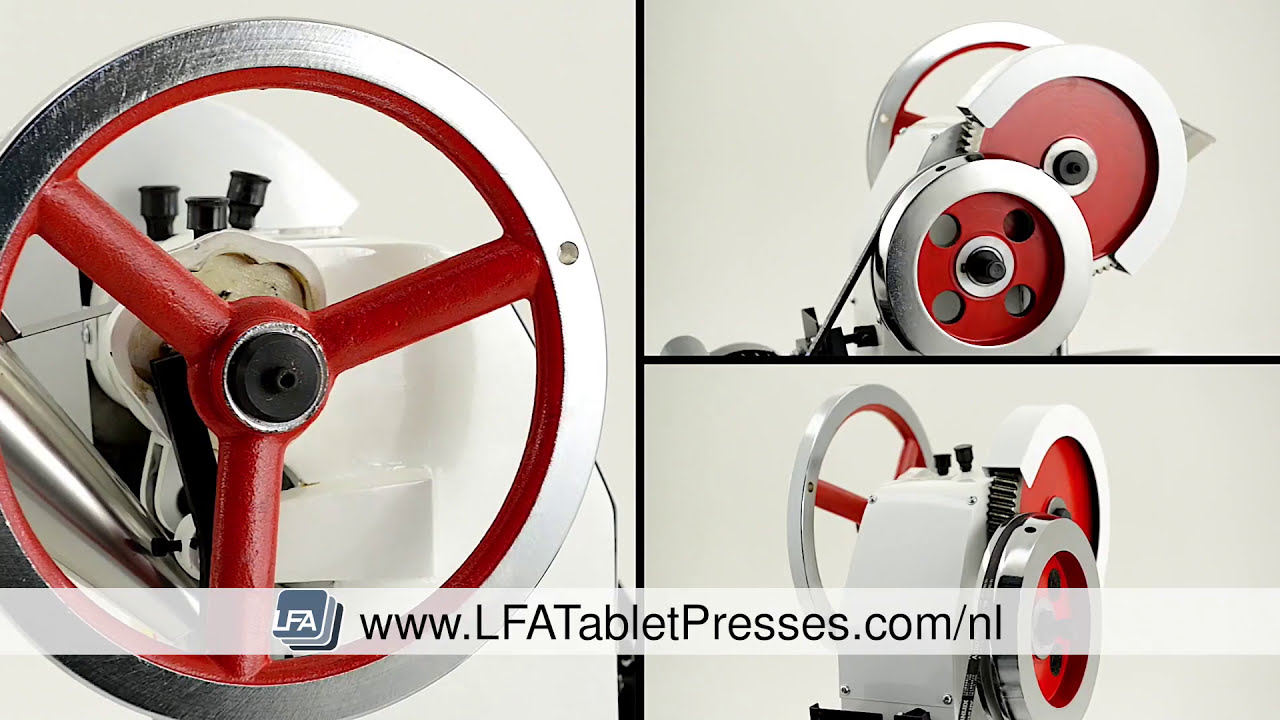

TDP 5 Desktop Tablet Pers
De TDP 5 is een veelzijdige en gemakkelijk te onderhouden tableteermachine op desktop formaat die indrukwekkende niveaus van snelheid, efficiëntie en flexibiliteit biedt. Hij kan draaien op elektriciteit of handmatig, deze machine is de perfecte oplossing voor iedereen die een hoge kwaliteit tablet pers nodig heeft voor kleine serieproductie en proefdraaien, waardoor hij bij uitstek geschikt is voor onderzoek en ontwikkeling of soortgelijke toepassingen.
Vul uw gegevens in en ons team zal u zo spoedig mogelijk een offerte sturen.
Als u op zoek bent naar een capsuleermachine om te helpen nieuwe pillen te ontwikkelen, of om concepten te testen voordat ze in productie genomen worden, biedt de TDP 5 een breed scala aan tabletmaten in kleine hoeveelheden produceren waardoor dit zeker de machine is voor u. Hij is ontworpen om te voldoen aan de behoeften van het laboratorium en ontwikkelingswerk, in plaats van grootschalige productie, maar de TDP 5 is niettemin in staat om een hoeveelheid van slechts een paar tabletten te maken tot aan kleine series van maximaal 5000 tabletten per uur.
De aantrekkelijkheid van deze tableteermachine ligt in zijn veelzijdigheid, in combinatie met een sterke set functies en de hoge kwaliteit van de productie. Deze laatste zorgt voor een uitstekende betrouwbaarheid. Om al deze redenen is de TDP 5 is een populaire keuze voor gebruik in onderzoeksinstituten, laboratoria, voedsel technologische toepassingen, farmaceutische ontwikkeling, chemische fabrieken en ziekenhuizen, of een locatie waar flexibiliteit, gebruiksgemak en snelheid erg belangrijk zijn.
Belangrijkste voordelen van de TDP 5 Tablet Pers:
- Lichtgewicht in zijn soort
- Compacte footprint
- Snel en betrouwbaar
- Flexibele output
- Elektrisch of handmatige aangedreven
- Brede grondstof compatibiliteit
- Laag verbruik
- Werkt met 200g minimum hoeveelheid aan ruwe materialen
- Drukt tableten in elke vorm
- Aanpasbare tablet diameter, diepte en hardheid
- Optie om ontwerpen op tablet te stempelen
- Passend voor motief of continue folie
De TDP 5 is een enkelvoudige pons tablet pers met een maximale druk van 50 kN. Hij is ontworpen om te worden gemonteerd op een werkbank, maar kan gemakkelijk worden gedemonteerd en verplaatst. De machine heeft een instelbare diepte vulling met een maximale diepte van 18 mm, en kan tabletten produceren tot 20 mm in diameter en 6 mm dikte. De TDP 5 is niet beperkt tot gewone tabletten. Simpelweg door het veranderen van de mal op de machine kunt u tabletten produceren in bijna elke vorm die u kiest. U kunt ook de dichtheid van de tablet aanpassen, en de machine geeft u de mogelijkheid om ontwerpen op het oppervlak van de tablet te drukken, hetzij voor een aantrekkelijke afwerking of voor identificatiedoeleinden. Gelet op de populariteit van de de TDP 5 bij onderzoek en ontwikkeling laten veel gebruikers weten dat ze dit een handige functie vinden, omdat hiermee kleine hoeveelheden tabletten met elk een andere samenstelling kunnen worden geproduceerd voor klinische studies
Deze capsuleermachine is compatibel met de meeste korrelvormige of poedervormige materialen, maar hij is niet bedoeld voor gebruik met te vochtige materialen of ultrafijne poeders.
De TDP 5 is ontworpen met gebruiksgemak in het achterhoofd, het is een zeer praktische machine die elektrisch kan worden aangedreven of kan worden gebruikt in de handmatige modus. In de handmatige modus is de tablet pers eenvoudig te bedienen door het draaien aan een slinger wiel. In combinatie met een kleine footprint en een laag gewicht voor een tableteermachine van deze specificaties maakt deze flexibiliteit de TDP 5 veelzijdiger en draagbaarder dan andere machines die vergelijkbare prestaties.
De TDP 5 tableteermachine heeft afmetingen van 700 mm x 400 mm x 800 mm en weegt 125 kg. Het heeft een draaisnelheid van 1400 r/min als hij draait op elektriciteit, en de motor werkt met een maximaal vermogen van 0,75 kW voor een enkele gebruiksfase en 0,55 kW bij driefasen gebruik. De machine kan draaien op netstroom die ofwel 110V of 220V levert.
TDP 5 Tablet Pers in Gebruik
Deze tableteermachine is bijzonder eenvoudig te gebruiken, en ondanks zijn kleine formaat biedt hij een aantal voordelen die hem onderscheidt van vergelijkbare machines.
Om de pillenpers met de hand te draaien plaatst u de grondstoffen in de kegelvormige container, pak het wiel en draai voorzichtig. Uw nieuw gemaakte tabletten zullen verschijnen, klaar om te worden gebotteld. Het is een eenvoudig proces dat iedereen snel kan leren. Als u maar een paar tabletten maakt komt deze eenvoud pas echt tot haar recht, het is een belangrijk kenmerk van de machine. Als alternatief kunt u als u een grotere partij tabletten wil produceren, uw machine gewoon aansluiten en hij zal snel en soepel draaien op elektriciteit.
Het ontwikkelen en testen van pillen vereist vaak de creatie van tabletten met soortgelijke, maar iets andere samenstelling. De TDP 5 bevat een aantal eigenschappen die hem bijzonder geschikt maken voor deze rol.
In de eerste plaats is het een zeer efficiënte tableteermachine waarbij zijn lage verbruik u helpt om meer pillen te halen uit een bepaalde hoeveelheid grondstof. Ten tweede is een bijzonder voordeel van de TDP 5 dat hij kan worden gebruikt met een minimale hoeveelheid van slechts 200 g materiaal. Dit is perfect voor onderzoek of ontwikkelingswerk, als u misschien maar een paar tabletten wil maken voor de eerste testdoeleinden. Later, als u eenmaal veelbelovende samenstellingen hebt geïdentificeerd, kunt u de TDP 5 gebruiken om grotere partijen te draaien voor de distributie in tests op volledige schaal.
Op de derde plaats stelt de TDP 5 u in staat om de effectiviteit van het testproces te beschermen, door ervoor te zorgen dat de tabletten die u produceert gemakkelijk kunnen worden geïdentificeerd. Dit is belangrijk om er zeker van te zijn dat de juiste samenstelling voor het juiste subject wordt gebruikt. De TDP 5 gaat deze uitdaging aan dankzij het gemak waarmee u de vorm, grootte of het ontwerp van de tabletten kunt veranderen. Zolang u een mal heeft voor de tablet die u wilt maken, kunt u het ontwerp snel veranderen door het verwijderen van de trechter en het losdraaien van het feeder-mechanisme.
U kunt tevens de dichtheid en het gewicht van de tabletten u produceert met de TDP 5 aanpassen, simpelweg door een moer op de drijfstang los te draaien en de druk aan te passen.
Het onderhoud van de TDP 5 is ook niet veeleisend, alles dat nodig is is twee keer per maand inspectie, en het oliën en smeren van de belangrijkste bewegende delen. De machine is ontworpen om dit schema zo eenvoudig mogelijk te maken.
De TDP 5 vertegenwoordigt een uitstekende prijs-kwaliteitverhouding en biedt ongeëvenaarde veelzijdigheid. Gemakkelijk onderhoud en de mogelijkheid van het creëren van kleine tablet runs met de hand maken dit een zeer handige machine om te gebruiken, terwijl de mogelijkheid om te draaien op elektriciteit en de productie van grotere batches van 5000 tabletten per uur u effectief twee machines in één geeft. Het is niet verwonderlijk dat de TDP 5 een van de meest populaire machines in zijn klasse is.
|Max Druk (kN)||50|
|Max Diameter van Tablet (mm)||20|
|Max Vul Diepte (mm)||18|
|Max Dikte van Tablet (mm)||8|
|Max Productie Capaciteit Per Uur||5400|
|Dubbel Gelaagde Tablet||Nee|
|Volt||240v (110v op verzoek)|
How Much Profit Will This Machine Generate?
Are you able to calculate the amount of profit your business generates per tablet? If so, this calculator will be able to tell you how many hours you will have to run this tablet press to cover its investment.
It will also be able to tell you the amount of profit it will generate every hour you run this tablet press, which makes this calculator a powerful tool when deciding on which tablet press is right for you or your business.
Profit Generated Per Hour
This machine returns it's investment in hours
Dit is een veel voorkomende vraag als alle machines zijn zeer vergelijkbaar, maar even hebben verschillende sterktes.
De eenvoudigste manier om deze split-up zou worden in de automatische en handmatige machines.
De TDP 0 is de handleiding model en vraagt u om de hendel aan de zijkant voor het produceren van de tabletten. Dit heeft de minste hoeveelheid druk en is het entry-level model in de TDP bereik.
De TDP 1.5, TDP 5 en TDP 6s zijn alle automatische machines die worden aangedreven door een elektrische motor. De TDP 1.5 is het entry-level model in de automatische machines het heeft de minste druk op 15kn het is ook beperkt in de omvang van de tabletten kan produceren. De TDP 5 is ons meest populaire model en kan produceren ongeveer 5.000 tabletten per uur. De TDP 5 had 50kn van druk en kan het produceren van tablets tot 22mm diameter. De TDP 6s is de bovenkant van het bereik van de machine en is meer geschikt voor een onregelmatige vorm van tabletten. De TDP 6s heeft ook iets meer druk op 60kn en is beter geschikt voor bepaalde producten die niet in de vorm van tabletten zo gemakkelijk.
We kunnen u trainen in Bicester, in onze vestiging. Het duurt ongeveer een dag.
Echt snel. De gemiddelde kosten per tablet wanneer ze door een contractfabrikant worden gemaakt, bedragen £0.002 - £0.005, afhankelijk van hoe moeilijk het is om ze te drukken en de grootte van de batch. Dat betekent dat een TDP 5 zichzelf terug zal betalen bij slechts 380.000 tabletten. Bij 5000 tabletten per uur is dat maar 76 uur.
De TDP 5. Dit is al een tijdje het meest populaire model. We hebben klanten die terugkomen en upgraden naar de RTP 9 (meestal na een paar jaar), maar de meeste klanten beginnen met de TDP 5.
Yes, you do get a die with the machine. Every machine comes fitted with a die.
If you would like you can get this customised with your logo or lettering but it takes 6-8 weeks.
Or, we have a standard 8mm round, bevelled edge with breaker installed in the machines in stock.
All of our machines are made by us, in Taiwan and are shipped to you from our nearest office.
We have offices in the UK, USA, Germany and Taiwan.
Because they are made by us we are able to control quality and give you the best support possible and because they are shipped from your local office it reduces wait times, avoids customs clearance and ensures you have support in your time zone in a language that is convenient to you.
Yes, you can.
You are able to make any shaped tablet up to the maximum diameter of this tablet press which can be found under the "specifications" tab.
We are able to customise tooling to include lettering, numbering and logos. If you would like customised tooling please fill out our custom tooling form: www.lfamachines.com/custom-tooling
No, it does not need to be bolted into position but we do recommend it. If the machine is not secured in position by bolts or another method then it is more likely to shake a bolt loose, resulting in varying tablet weights. On top of this, the vibrations are likely to make the machine sound louder.
The machine does not come with bolts because we do not know the thickness of your surface.
Yes, this is a common question we get asked so we have to tools to help you.
A video on the differences between the different TDP's www.lfatabletpresses.com/videos/tdp-range
The Right Machine For You Questionnaire - https://www.lfatabletpresses.com/tablet-press-questionnaire
Between these two you should get a much better idea and if not please do reach out, let us know what you are making and how many you need to make and we will help guide you through the process.
No, the TDPs are not CE certified. To pass, they would have to be installed in a protective cage which we do not provide.
Yes, the contact surfaces are all food and pharmaceutical safe.
They are made from a combination of, stainless steel, chrome coated brass and the steel used for your tooling (often S7).
As such they are all compliant with most rules for food or pharma manufacturing.
We strongly recommend that you do check your local laws as they do vary from state to state and country to country. If in doubt reach out and we will be happy to find out.
We would recommend using, goggles, dust mask and gloves at a minimum but you may require a lot more depending on the products that you are working with and your local health and safety laws.
We would recommend cleaning down the machine and leaving it re-greased after every use. This will ensure the longest life possible.
When greasing the machine, avoid getting any near the tooling or pressing surfaces as this will get into your tablets and affect your powders.
Grease the top cam well, then apply a small amount to the upper drift pin assembly and the lower timing rod.
With regards to the types of products that we would recommend, this would depend on your product. If you are making food grade products then you would want to use a grease that was NSF approved. If you are making a very caustic sodium based product however, then you would likely need to use a product that is resistant to salts.
More information on greasing your machine can be found here:TDP 5 Lubrication Schedule
Yes, the VICE, TDP 0, TDP 1.5, TDP 5 and the TDP 6s from LFA all take what is known as Universal TDP Tooling.
It is important to know two things. Firstly, the TDP Universal Tooling came into effect in 2018 machines brought from LFA before this time may have slightly different sizes.
We always recommend checking the size of your tooling before placing your order. Secondly, a number of companies make unofficial TDP tablet presses.
They do not always conform to the same sizes, tolerance or quality of LFA TDP’s or tooling. If you got your press from someone else other than LFA we are not able to guarantee that our tooling will fit.
LFA does not recommend leaving any of its machines unattended without an operator ever. Even if they only need to step away for a short amount of time, the operator should turn off the machine.
This will avoid damaging it in the event that there is a jam and the operator is not there to switch it off.
The length of the warranty on any of the TDP range machines is 1 year from the date of purchase.
This warranty covers spare parts and excludes tooling and maintenance labour from LFA for machine services.
When you receive your machine, you will be given a serial number that will also be stamped onto the press. You will be able to use this if you ever need to make a warranty claim.
Full details on the LFA warranty can be found here: Warranty | We Have You Covered
The most common wear part on the machine is the boot. This comes in direct contact with the die cavity and can be hit or chipped by the upper and lower punches. This is made of brass so that the tooling is protected in the event of a collision. Because of this, the boot is soft and will wear over time. If anything, we recommend keeping a spare to avoid losing production time.
We also recommend that you keep at least 1 spare set of tooling as this can break or wear over time.
LFA does aim to hold all major spare parts and tooling in stock so that they are ready to ship out in the event that you need them. The lead times on sold out parts, however, can take up to 6-8 weeks.
Yes, you can but there are a number of requirements that we need to fulfil first.
You will need to contact our team and provided them with a copy of all of your MSDS for all of the components of your mix.
We need to have a good understanding of your business and the challenges you are facing.
You will also need to book an appointment with the office that you would like to visit.
For more information please get in contact with the team: https://www.lfatabletpresses.com/contact
Yes. Very easily.
We have free lifetime technical support for all machines sold by LFA.
Just contact us with your machine serial number and we would be happy to help you with any problems.
Yes. You can order custom tooling here
As with any tablet press, it is good to have a particle size of around 80-60 mesh.
This would be large enough to avoid large losses and small enough to flow well through the machine. If the powder is finer than this then you are going to experience a larger level of loss.
If the particles are larger than this then it might not flow through the machine well and get caught as it is trying to enter into the die bore.
This being said every powder is very different and you will need to do tries to work out what is best for them.
There are a number of ways we are able to support you:
- Every machine comes with a full manual to be emailed to you after purchase.
- There is a large range of video tutorials to teach you how to use the press.
- The machine comes with lifetime technical support, you can call, Skype or email to get answers to your questions and problems.
- We also offer free training at any one of our regional offices.
If after all of this you are still struggling to use your press then we are able to come to you.
This is a service we do charge for.
More information on this can be found here: https://www.lfatabletpresses.com/services
Yes, the TDP range all have a weight adjustment for it.
It is the bottom of the two cogs on the lower drift pin assembly.
Here is a link to a video showing you how to tune up the TDP 5: https://www.youtube.com/watch?v=4dTscUdRJzQ
It is important to know that the exact weight of each tablet will vary from tablet to tablet.
A well-homogenized mix that has a consistent granule size should be able to achieve an accuracy of +/- 3% or less.
There are three reasons to granulate your formula:
1. To improve the flowability of your formulation.
2. To make your formulation more compressible.
3. To ensure a consistent spread of API throughout the formulation.
If you would like to find out if your mix needs granulation then we do have a tablet formulation service available.
You can find out more about the tablet formulation service here: https://www.lfatabletpresses.com/services
Get a capsule filler.
You will not be able to make tablets.
Click here for more information https://www.lfacapsulefillers.com/
We send out all machines with the local plug on and set up to run on the local power supply.
The TDP 5 is an incredibly hardy little machine.
Not only that but it has a very basic mechanical process. While parts can break and wear over time the cost of replacing them is normally very low. We have known customers to have done 100,000’s of tablets on the TDP 5.
This having been said it is still just an R&D and small batch machine. We would not recommend using it for making large batches.
The reason for this is that it is slow at only 5000 per hour and if you do run it constantly then you are going to be replacing a lot of parts on it. The life of the TDP 5 can easily be in the millions of tablets if well looked after and maintained.
We would recommend a batch of around 5,000 once per day.
It is a balance. If you stop and start the motor then you are likely to wear it out. If you run the press for long periods of time then as it heats up parts will expand the grease will thin and the wear on the machine will increase.
Yes, but not pharmaceuticals it is not compliant with cGMP standards.
If you need a cGMP compliant machine then the best desktop for this is the DTP 12 or 25. LFA is of the understanding that the TDP 5 can be used to make food products and supplements.
It is worth checking with your local food regulators if they have recommendations as to cleaning procedures. It is also worth inquiring about their specific regulations as each territory and regulating body has slightly different requirements.
That depends on the country you are located in.
In the EU and UK no. You do not need anything to buy the press.
In the USA we have to file a piece of paperwork with the federal government when we sell the press.
We, however, do all of this paperwork for you and do not need to do anything.
The only countries that require a licence as far as we know are Canada and Australia.
If you are located in Canada then we recommend that you contact Health Canada prior to placing your order. Details regarding the import process can be found at the following link: Importing and registering pill presses (designated devices)
The document you need to fill out and file for a purchase originating in Australia is called a B712 it can be found at: https://www.abf.gov.au/form-listing/forms/b712.pdf If you would like to speak with one of our team about this then please get in contact.
There is a bolt eyelet on the top of the machine.
We recommend using an engine hoist to lift the machine off the shipping crate and into the position that you are going to use it in.
There are a few interchangeable parts if both machines have been made by LFA Machines. From the TDP 0, this includes the tooling, the lower drift pin assembly, and its corresponding set of cogs.
The most important fit to check for is tooling that you may have previously purchased, because the base plates have been redesigned to fit the universal standard tooling die.
More information on the TDP Universal Tooling Standard can be found here: Tooling | Punch & Dies for TDP Pill Presses
All other parts are custom to this press.
The TDP 5 and the TDP 6s are both able to take shaped tooling. This being said, it is a lot easier to use shaped tooling on the TDP 6s because of the way that the pressure is adjusted
There are a number of times when it would be better to get a TDP 5 instead of a TDP6. Really a TDP 6 is only better if you need to make shaped tablets (not-round) very regularly or if you need to make very large tablets (bigger than 12-14mm).
If this is not the case then the TDP 5 is lighter, faster, and costs less than the TDP 6.
Spare parts are held in stock in the UK, USA and Taiwan. This means that we can normally dispatch them in 1-2 days. Shipment delivery times will vary depending on your location.
On the TDP 5 Version 2 the contact parts are made from, stainless steel, food grade plastics and the steel that the tooling is made from. The tooling that comes with the machine is made from S7 steel. If you need a different steel type for your tooling, you can place an order using our custom tooling form:https://www.lfamachines.com/custom-punch-dies-tooling
The TDP 5 has a safety cover over the drive cog to protect you when it is running. There is also an accessible off button, to manually shut the machine off.
No, at the moment we have not done any reliability testing on the TDP 5. LFA, however, has 10 years experience selling, maintaining and servicing the TDP desktop press so we are sure of its reliability.
Yes, you can request multi-tip tooling for your TDP5, but there are a few things to consider first. Because the maximum tablet diameter size on a TDP 5 is 20mm, all of the punches would have to fit into this space, resulting in very small tablets. In addition to smaller tablets, it would not be cost effective since the cost of multi-tip tooling is the same amount as a second machine.
It is important to remember that the TDP 5 is sold as an R&D and small batch machine. If you are looking to do large runs then you might want to consider an RTP rotary tablet press.
The largest tooling that the TDP 5 can take is 22mm however at this point the amount of pressure that you are able to get is very low. This is because the boot is not able to move out of the way of the die as it comes down.
This will be affected by your mix. Most mixes will not have the density required to work with such a thick tablet and low amount of compression.
Because of this at LFA we do recommend that you only try to make a tablet of up to 14mm on the TDP 5. If you do need to make a bigger tablet then we would recommend using a TDP 6s or one of the RTP range of rotary tablet presses.
This feature is not available on the TDP 5. The TDP 5 is a basic machine that is priced accordingly. If you need to know the amount of pressure that you are using to make one of your tablets you might want to consider an RTP 10i or HSTP.
No, if you would like to adjust the speed of your TDP 5 you will have to do so using a variable speed adjuster.
There are off the shelf versions that the TDP can plug into. You need to make sure that it is set up for the right electrics for your motor.
Yes, our 1 year warranty covers all of the parts on the machine, except for the tooling. If you install it in a cage to conform with CE regulations then it will in no way affect the warranty.
We would recommend securing the TDP 5 in one of three ways:
Anti-vibration feet. These work great, they are large rubber pads that can bot through the 3/4 holes on the bottom of the press. They reduce the amount of noise from the machine and the rubber pads will stop it from slipping around.
G-clamps. An easy way to secure the tablet press to a table top without doing any damage to the bench top is using G-clamps. These are available from most hardware stores and are easily able to pin the machine to the work surface securely.
Bolt the press to the worktop. We would only recommend this if you really are sure of the location that you would like it to be secured. If you do want to do this then you can use the bolts that were sent with the press that was used to secure it to the shipping container.
We don’t have a template available at the moment. You can measure the distance between the holes in your machine’s base to determine where to drill holes on your workstation. The tablet presses include the M10 bolts that we use to secure them to the shipping crate, so we would recommend using a 12mm drill bit.
There are three things that could be causing this fault:
The motor is burnt out. If this is the case the motor will be slow to start if it starts at all. It will be really hot and it will make a grinding noise.
The punches are not in the die. If the top punch is not aligned or the bottom punch is not securely in the die bore then the machine will perform a 1/2 rotation before jamming.
The machine has not been greased correctly. If this is happening then the machine might run for a full turn or maybe even a few and then it will jam. This happens as the cogs, cams and bushings heat up and expand until they jam. The most likely place this is happening will be on the pinion gear. It is critical that this part is well lubricated.
No. Sorry. If you would like it in another language, we would be happy to get it translated for you. Simply reach out to the LFA team and we will work to get it done. Please note that this could take a while and we are not able to guarantee if we will be able to get it done.
Yes. Some of them. There are a number of parts that are able to be changed between the different TDP ranges. This includes the tooling, a lot of the upper and lower drift pin assemblies and the boot bolt and spring.
No, sorry. We are only able to offer them in one colour. It is important to point out that the colour in the photo might vary slightly from batch to batch of machines.
We have a tool called the right machine for you. It can be found here: Right Machine For You - Questionnaire
Yes, you can, but most people would not. There are a few technical challenges that exist with making effervescent tablets that do not exist with other forms of tablet that the TDP 5 is not well suited for.
Most effervescent tablets tend to need to be quite large. As the TDP 5 is not great at making a tablet over 14mm this would be a problem for most people.
If the size is not the problem then the tooling could be. Effervescent tablets tend to have quite high ejection forces and are prone to sticking to the punches. To combat this, we would normally create tooling with PTFE inserts and tungsten carbide lined dies. This would make the one set of tooling for the TDP quite expensive and not only that but there is a minimum order quantity of 5 sets when ordering custom tooling.
The TDP 5 is cleaned in the same way as any press. We recommend 6 separate steps:
Removal of Powder - Start at the highest point of the machine while it is still assembled. Hoover out the residue powders using a paintbrush to dislodge any powders trapped in tight areas.
Remove the hopper, boot, base plate and tooling.
Apply Soap - Wash the entire machine with warm soapy water. Making sure to pay extra attention to all of the contact parts. Do not soak the machine, rather apply it with a cloth or sponge and then wipe it dry as you go.
Sanitise - use a sanitising spray or wipe to clean down the entire machine making sure you pay close attention to all contact parts.
Rinse - Next rinse off any soap or sanitising spray with potable water. Making sure not to soak the machine, rather apply it with a cloth or sponge and then wipe it dry as you go.
Oil and Lubricate - Finally to prevent rust and keep the machine running smoothly lubricate.
We would recommend that you do this at the end of every production run or day that you have been using the machine on. We would also recommend that you store the machine under a dust cover and in a cool, low humidity environment to prevent rust.
More information on cleaning and maintenance for the TDP 5 can be found here:
No. It is technically possible for us to make tooling that is less than 4 mm however, the TDP does not really have the tolerances for the tooling to work properly with most mixes, so we do not recommend it.
When operating a desktop tablet press, supervision is required at all times. From time to time, excess powder can build up and cause tablets to form where the front of the boot gets to in its ejection cycle. When this happens there is a chance that a tablet could roll back into the way of the upper punch coming down to make a second tablet.
If this happens the addition of the two tablets together in the press will cause a jam that is very hard to undo.
If the machine is not turned off in time then the motor can burn out causing serious damage to the press.
It is also possible that your mix will stop flowing while running the machine. This will cause you to get underweight, soft tablets that will then have to be picked out, broken down, and reworked.
Yes, we are currently designing a perspex box that covers the entire machine. It will be sold as an optional extra.
Almost, you will have to attach the hopper. We leave this off so that it does not get damaged in shipping. This should take less than a minute. The machine will then be ready to run. It is important that at that point you tune the machine by hand and do not turn it on right away. If you do, it can damage the press. Here is a video on how to tune the TDP 5: Setup the Fill Depth, Punch Pressure & Ejection Height on a TDP 5 Tablet Press
We also have a video on unboxing your TDP 5 here:TDP 5 Unboxing & Setup
The most common part that gets broken is the boot followed by the lower assembly timing rod runner bolt. We hold both of these in stock.
A common reason the boot needs to be replaced is that the upper drift pin assembly was not locked in place. As the machine runs, it works itself loose and then over a few tablets, it comes down and hits the boot. This can also happen if the operator does not turn over the TDP 5 by hand to tune the machine before turning the motor on, causing the upper pin to crash into the boot.
A common reason why the lower assembly timing rod runner bolt tends to break is because the tablet ejection forces are high. To reduce this, the operator should ensure that the mix is correctly lubricated.
Not a lot. We have a number of videos on our website that do cover the basics. If you would like to have in person training, then this is something that we would be happy to offer. It is free for anyone that has bought a TDP 5 from LFA and available at any one of our three offices. This takes around 2-3 hours.
We would recommend doing a full clean down and re-greasing at the end of every production run. This takes about an hour and will dramatically increase the life of your press.
No, an allen key set, a spanner set, and a crosshead screwdriver will cover most of the operations that you should ever need to do. Even to do a full strip down and assembly there are no specialist tools that you would need that a local hardware store would not be able to provide.
No, sorry we do not customise our products. We only offer machines that are shown on our website. We do this so that we can be confident about the machines we sell and our ability to properly support them.
No. The way that a single station press works is that it runs in a single rotation. To put in a pre-pressure compression, you would have to stop the press and then reverse it. This really would not work. If this is something that you feel you need then it is best to look at rotary tablet presses. If pre-pressure is something you need, look towards our RTP 10i Rotary Tablet Press.
No. The fill depth of the press is 18mm.
Yes, you can change the tooling. It is fairly easy. It takes about an hour or so the first time you do it but an LFA technician can do it in around 10 minutes, practice makes perfect.
Here is a video link on how to change the tooling:How To Change A Die | Changing a TDP Tablet Press Punch Die
The tooling does wear out. How long this takes will depend on your product formulation. The more granular it is the faster your tooling will wear down.
Yes, just give us a call and we will check our stock levels. We aim to hold the TDP 5 in stock for our customers however there are some times when it does go out of stock, so it is worth calling.
If we have it in stock then it will take around 2-5 days to deliver to you depending on how far you are from our nearest office.
In order to determine whether or not your machine is still under warranty you will need to call or email the office the machine was purchased from and provide the serial number.
The TDP 5 has been designed to the CE standards.
It will depend on the model. All new models of the TDP 5 have emergency stop buttons.
22mm is what we say, although we have seen a customer successfully use a 27mm oval die on a TDP 5. This being said, the bigger the die the harder it becomes to use the press. The better you mix will need to be and every other factor will need to be in your favour. We do not recommend using a TDP 5 press a tablet above around 14-16 mm unless you have had your formula tested first. The ideal size is less than 12mm.
Yes, you can definitely make shaped tablets in the TDP 5. It is harder to tune, but it is definitely possible.
The expected life of your tooling will depend on a number of things. The most important is how granular your mix is. It will also depend on what steel grade you have opted to have your tooling made from and if it is coated. Because of all of these factors, it is almost impossible to predict how long your tooling will last.
LFA is aware of customers who have been able to run their TDP 5 for 10 hours a day multiple days in a row. LFA does not recommend this, because it will wear the machine down. It is important to let it cool and to clean and grease it regularly.
No. The TDP 5 is a single station tablet press. The RTP range is a rotary tablet press. The way that they work means that it is impossible to move the tooling from one to another.
The TDP 5 tablet press is 85 decibels, so it's not excessively loud. We would, however, recommend using ear protection if you are going to be using it for extended periods of time.
We have self certified it under the part finished machines regulations. You will need to set up the environment around the press in a way that finishes satisfying the CE requirements.
That would depend on the product you plan on producing, the requirements of your local authorities, and the governing bodies of the product that you are making. We would however strongly recommend installing it in a cage.
There are a number of advantages of the TDP 6s over not only the TDP 5 but all of the other TDP presses. The main one is how easily it is to press shaped tablets. It is able to do this because of the way that it adjusts the punch pressure on the machine. It does it using a linear motion rather than a rotational motion.
A video of how to adjust the pressure can be seen here:How to Adjust the TDP 6s or 7 Tablet Press Punch Pressure
The tension on your TDP 5 belt will depend on whether or not you are installing a new belt or tension on an old one. Here are the exact tensions for the TDP 5:
Installation strand tension for new belt [N] 141.64
Installation strand tension for run-in belt [N] 94.42
To measure the tension on a belt we use a tension pen gauge. Here is a link to a video on how to use the belt tension pen gauge: Browning Tensioning V Belt Drives
Deflection forces for belt tension pen gauge [kg]
As with all machines, the TDP 5 will have parts on it that over time will need to be changed or that can become damaged through user error. Below is a list of parts that LFA has come to recognise as the most frequently damaged or that have been designed to wear so that more expensive parts of the press are protected.
Tooling - The tooling on the TDP 5 can become chipped or broken. Lead times for a new set of tooling can take as long as 6-8 weeks so we recommend having a spare set or two. This is especially true if the tooling is customized.
Boot - The TDP 5 boot is formed from a toughened food grade plastic. This part can become trapped between the die bore and the upper punch and usually happens from user error when the upper punch has not been secured correctly. While we hold this part in stock at all of our locations it can reduce waiting to have a spare.
Boot Timing Bar - In the event that the boot is trapped or damaged by the upper punch the boot timing bar can become bent. While we hold this part in stock at all of our locations it can reduce waiting to have a spare.
V Belt - The V Belt on the TDP 5 is used to drive all of the power from the motor to the cams. This overtime will lose some of its tension and wear. When this happens the maximum pressure that you will be able to achieve on the press will reduce. We do hold this part in stock and most of the time the part will not fail, requiring immediate replacement. The tension on the belt can also be increased by adjusting the position of the motor. This will extend the life of the belt.
Upper Cam Bushing - The upper cam bushing is a brass wear part that is used to keep the upper cam from coming into direct contact with the base of the machine. This part will need to be replaced after around 500 - 1,000 hours depending on the product being pressed and the pressure being used.
Yes, this could be down to corrosion or due to oxidation of your product. We would highly recommend taking your tooling out of the press and cleaning it at the end of every production run.
We would also recommend polishing the tooling to keep the surfaces clean and less likely to cause picking or capping.
Yes, this can happen because the boot bolt and spring have been screwed too far into the press or have not been screwed in far enough. It is important to make sure that the bolt is in the correct position before over tightening the set screw.
It should be pointed out that it will not affect that operation of the press if it is damaged. You can still use your press as long as it screws in.
