HSTP High Speed Tablet Press Range
The HSTP Series of high speed rotary tablet presses is a major innovation in tablet pressing technology, achieving very high levels of productivity and speed and offering exceptional refinements in terms of safety, efficiency and quality of output. An LCD touch screen display panel makes these advanced pill presses very easy to use, while a host of features such as the automatic lubrication system make them simple to maintain. The operator can choose between manual or automatic modes for many functions, allowing for easy use when applying standard settings, or fine control to suit advanced users.
Connect with Our Team
If you have a question or would like more details on the HSTP High Speed Tablet Press Range, please complete the form below and someone from our team will be in touch with you soon.
Depending on the model chosen, the HSTP tablet presses can produce tablets of up to 25 mm diameter and up to 8 mm thick. They are very powerful machines, using a 380v 3-phase power supply to run an electric motor which enables them to generate a maximum of 100 kN pressure, plus 20 kN of pre-pressing pressure. With between 26 and 40 filling stations and a production rate of between 135,000 and 252,000 tablets an hour, the HSTP Series tablet presses are aimed squarely at large scale manufacturers in the pharmaceutical, chemical and related industries.
Main benefits at a glance:
- High speed tablet production with between 26 and 40 stations producing up to 252,000 pieces/hour
- Advanced yet highly intuitive LCD display touch screen control panel for easy programming, adjustment and control
- Pre-pressing function with up to 20 kN pressure and a maximum main pressure of up to 100 kN ensures fast, high quality output for pharmaceutical grade tablets of the highest commercial standard
- Over-pressure cut out mechanism to avoid damage to punches
- Automatic lubrication system for efficient maintenance and enhanced reliability
- Sealed compression chamber with integral powder suction device reduces risk of contamination, reduces raw material wastage and avoids blockages
- Organic glass turret shield improves operator safety and avoids cross contamination
- Forced feeder ensures accurate dosing and better raw material efficiency
- Inverter technology for reduced energy consumption, improved stability, better control and lower noise
- Safety cut out mechanism and warning messages triggered if errors occur, including loose guide rails, loose punches, or low oil
The HSTP Series has been created to meet the needs of major manufacturers without compromise. One of the principal advantages of this series is the use of an LCD touch screen display panel. This provides a logical and simple menu structure that makes it easy to control the substantial reserves of power that these machines offer.
The pre-pressing function on the HSTP Series ensures faster production rates twinned with higher quality. The high maximum pressure guarantees top quality tablets even when using difficult to compress raw materials. Essential when dealing with so much power, an over-pressure cut out mechanism prevents damage to the machine or its dies, and a safety cut out mechanism triggers comprehensive warning messages advising the operator of errors.
An automatic lubrication system handles much of the repetitive but essential lubrication work, helping to cut maintenance times while preserving the long term service life of the tablet press. As with most of the machine’s advanced functions, there are also manual options which override to give the operator complete control.
Efficiency is a key feature of this tablet press series. The sealed compression chamber, powder suction device and forced feeder all contribute to getting the most production from expensive raw materials, while reducing the risk of contamination and ensuring accurate dosing.
Despite the high power of the HSTP motors, the use of inverter technology gives a low noise output that enhances the working environment, as well as greatly improving energy efficiency. The glass safety shield prevents contamination and guards against the risk of operator injury.

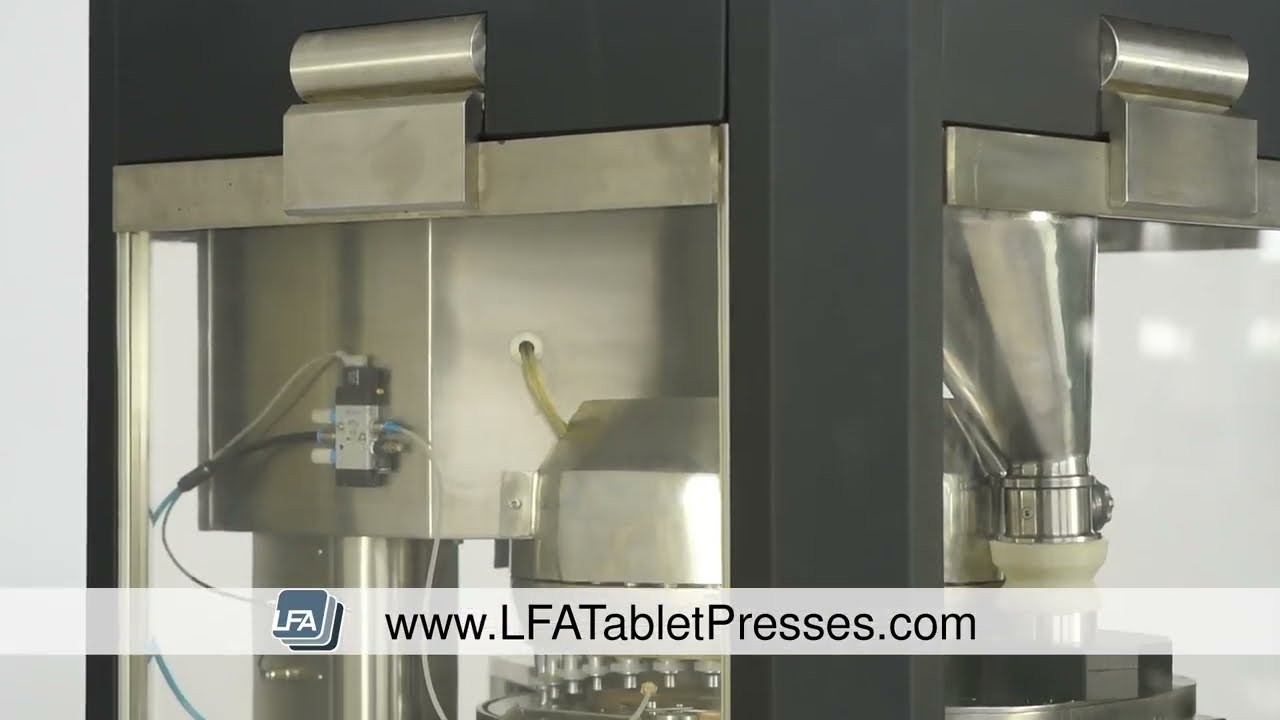

HSTP Tablet Press in Use
All the machines in the HSTP range are exceptionally fast and powerful, yet the LCD touch screen display is so intuitive in its operation that operator training need not be extensive. More advanced users will find that there is plenty of scope for refining the operating parameters, but the simple automatic operation options let you get up and running quickly.
Obviously these are machines intended for large production runs, and with so many cutting heads the dies are not going to be changed on a whim. But they are very simple to change when the need arises.
It can be a little overwhelming to see so many tablets being produced so rapidly, but after a while the novelty wears off and the user is free to concentrate on more mundane matters. The automatic lubrication system greatly reduces the time commitment needed to keep these machines running, and the forced feeder does a good job of helping with consistent dosing to ensure accurate tablet weights.
Anyone used to using an older style tablet press, with numerous bolts and wheels for adjusting the machine’s parameters, will find the HSTP range a revelation. Not only is electronic adjustment faster and easier, it is also more accurate and easier to reproduce for future batches. In fact, these machines have an excellent facility that allows recipe settings to be stored and reproduced for future use.
Thanks to the enclosed turret and powder suction device you do not have to worry about dust floating around, making the working environment much more pleasant than with many other tablet pressing machines.
Download the HSTP Manual and Specification Sheet for free
This information will help you figure out what the HSTP can do for your business.
The HSTP Series of high speed rotary tablet presses represents the ultimate in advanced tablet production. They are a significant investment, but this is easily justified by being the fastest and most powerful machines we sell as well as the most technologically advanced. Any manufacturer looking to produce up to a quarter of a million tablets an hour is going to find it hard to attain better value than this range of tablet presses, especially when you consider the reduced human input time that their automation makes possible.
Reliable, superbly engineered, extremely accurate in their operation and highly efficient in their use of raw materials, these tablet presses achieve exceptionally low unit costs. This major benefit is heightened by their low maintenance requirement, and by the long service life that comes from optimum lubrication and an extensive battery of safety warnings that avoid wear and the risk of damage.
The production figures and advanced technological features speak for themselves, leaving little doubt that the HSTP Series is an outstanding range of tablet presses.
|Number of stations||26||32||40|
|Tooling Specification||Euro D||Euro B||Euro BB|
|Max. Output (pcs/h)||135,000||210,000||260,000|
|Max. Main Compression Force (kN)||100||80||80|
|Max. Pre-compression Force (kN)||20|
|Max. Tablet Diameter - Round (mm)||25||16||13|
|Max. Tablet Diameter - Shaped (mm)||25||18||16|
|Max. Filling Depth (mm)||20|
|Max. Tablet Thickness (mm)||6|
|Power USA||220v, 3 Phase, 9.5 kW, 60 Hz|
|Power UK||380v, 3 phase, 9.5kW, 50 Hz|
|Dimensions (with crate) LxWxH||1000mm x 1470mm x 2160mm / 39in X 57.9in X 85in|
|Dimensions (without crate) LxWxH||1000mm x 720mm x 1868mm / 39in X 28.3in X 73.5in|
|Weight (with crate)||1900 kg / 4,190 lbs|
|Weight (without crate)||1750 kg / 3,858 lbs|
How Much Profit Will This Machine Generate?
Are you able to calculate the amount of profit your business generates per tablet? If so, this calculator will be able to tell you how many hours you will have to run this tablet press to cover its investment.
It will also be able to tell you the amount of profit it will generate every hour you run this tablet press, which makes this calculator a powerful tool when deciding on which tablet press is right for you or your business.
Profit Generated Per Hour
This machine returns it's investment in hours
We've created a calculator on our website for most of our tablet presses. See the "profit calculator" tab on the product page and enter your profit per tablet to see how many running hours the press will pay for itself and how much profit per hour it will generate.
Yes, you can, but there are a number of requirements that we need to fulfill first.
You will need to contact our team and provide them with a copy of all of your MSDSs for all of the components of your mix.
We need to have a good understanding of your business and the challenges you are facing.
You will also need to book an appointment with the office that you would like to visit.
For more information please get in contact with the team: https://www.lfatabletpresses.com/contact
Yes. Very easily.
We have free lifetime technical support for all machines sold by LFA.
Just contact us with your machine serial number and we would be happy to help you with any problems.
Yes. You can order custom tooling here
As with any tablet press, it is good to have a particle size of around 80-60 mesh.
This would be large enough to avoid large losses and small enough to flow well through the machine. If the powder is finer than this then you are going to experience a larger level of loss.
If the particles are larger than this then it might not flow through the machine well and get caught as it is trying to enter into the die bore.
This being said every powder is very different and you will need to do tries to work out what is best for them.
There are a number of ways we are able to support you:
- Every machine comes with a full manual that is emailed to you after purchase.
- There is a large range of video tutorials to teach you how to use the press.
- The machine comes with lifetime technical support. You can call, Skype or email to get answers to your questions and problems.
- We also offer free training at any one of our regional offices.
If after all of this you are still struggling to use your press, we are able to come to you. This is a service we charge for.
More information on this can be found here: https://www.lfatabletpresses.com/services
Yes, the TDP and RTP range all have a weight adjustment for it.
on the TDP it is the bottom of the two cogs on the lower drift pin assembly.
Here is a link to a video showing you how to tune up the TDP 5: https://www.youtube.com/watch?v=4dTscUdRJzQ
Here is a link to a video showing you how to tune up the RTP 9 or the RTP 118: https://www.youtube.com/watch?v=YJFt5AFJ1hw
It is important to know that the exact weight of each tablet will vary from tablet to tablet.
A well-homogenized mix that has a consistent granule size should be able to achieve an accuracy of +/- 3% or less.
Get a capsule filler.
You will not be able to make tablets.
Click here for more information https://www.lfacapsulefillers.com/
We send out all machines with the local plug on and set up to run on the local power supply.
In order to determine whether or not your machine is still under warranty, you will need to call or email the office the machine was purchased from, and provide the serial number.
No, there are 3 specifications for Rotary Press Tooling and a number of different sizes that fall under them. These 3 specifications are RTP, Euro, and TSM. Under TSM and Euro tooling specifications, there are 4 common sizes: B, D, BB, and DB.
Our tooling specification guide can be found here: Tablet Press Tooling Specification Guide
